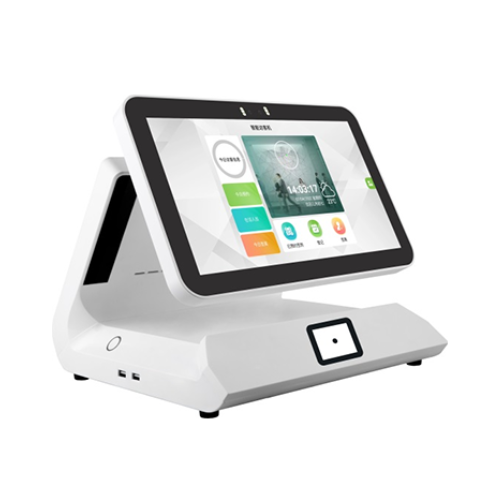

ZKVD100
modelZKVD100standard specificationBuilt-in resident ID card reading machine conforms to GA450-2013 General Technical Requirements for Desktop Resident ID Card Reader,GA467 Technical Specification for
Product ordering Add to collectionProduct parameters
| model | ZKVD100 | |
| standard specification | Built-in resident ID card reading machine conforms to GA450-2013 General Technical Requirements for Desktop Resident ID Card Reader, | |
| GA467 Technical Specification for Interface of Security Control Module for Authentication of Resident Identity Card | ||
| processor | RK3288 | |
| Random Access Memory | 2GB DDR3 | |
| storage capacity | 8GB | |
| operating system | Android7.1.2 | |
| identity card | You can read all the information of the ID card, with reading time ≤1s and reading distance of 0-30mm. | |
| camera | High-definition camera with 2 megapixels | |
| monitor | Guest: 11.6-inch high-definition display with a resolution of 1920*1080. | |
| Main screen: 11.6 HD capacitive touch screen resolution 1920*1080 | ||
| label printer | USB external printer is supported | |
| data interface | There are 4 internal USB and 2 external USB (one of which includes OTG debugging port). | |
| communication method | TCP/IP“wi-fi”4g | |
| Power supply specification | DC12V 3A | |
