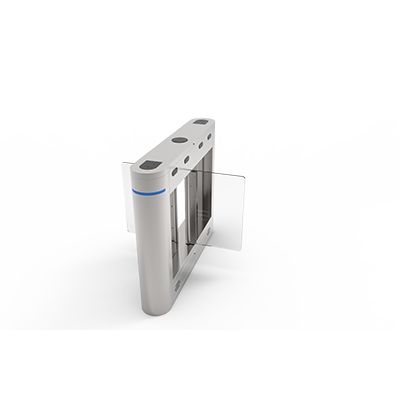

SBTL300Plus
Identification unitDesignated reading head door access control or custom installation for customers.Power supply voltageAC110-220V10%,50HZWorking environmentIndoor/outdooroperating ambient temperature
Product ordering Add to collectionProduct parameters
| Identification unit | Designated reading head door access control or custom installation for customers. |
| Power supply voltage | AC110-220V±10%,50HZ |
| Working environment | Indoor/outdoor |
| operating ambient temperature | -28-60 degrees Celsius |
| rated power | 150W |
| Relative temperature | 5%-80% |
| Traffic speed (xx people/minute) | 25-30 (normally closed mode) |
| Average number of trouble-free operations | 5 million times |
| Gate opening and closing time | 0.8 second adjustable |
| active infrared intrusion detectors | 4 Right. |
| Input control signal | Relay dry contact switch signal |
| Width of pedestrian passage | 70mm (standard) single-sided swing arm exposed: 350mm |
| Swing arm material | Acrylic swing arm as standard |
| Material | Stainless steel 304 material thickness: 1.2mm box: 1.0mm. |
| Box size | 1200mm*200mm*980mm |
